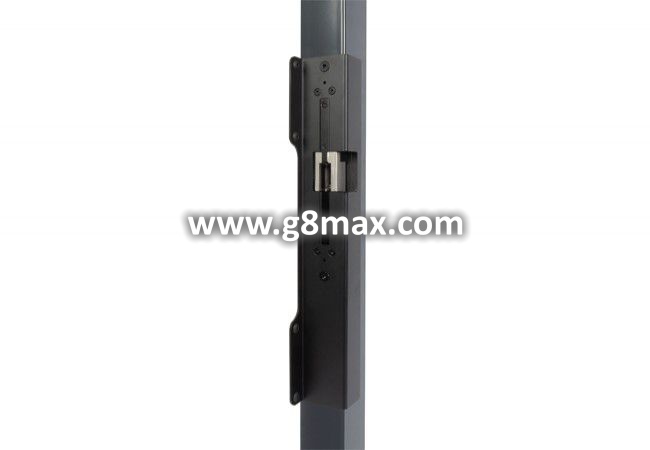

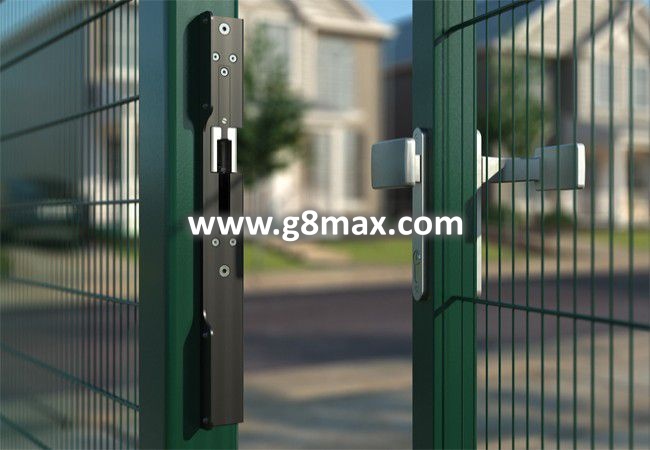

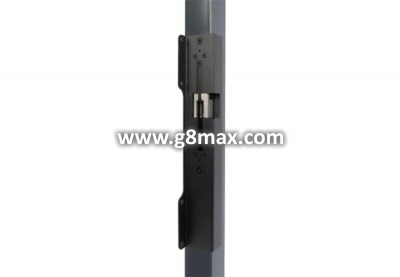

Electric strike for swing gates Locinox INTRALEC Ruptura RAL9005

Robust and discreet electric lock integrated into the post profile. Intralec is integrated into the profile, making it virtually invisible. Easy and secure installation thanks to the patented Click-It system. It can be installed without a mounting plate and if the gate needs to remain open, mechanical release is possible. Intralec is available in Fail Open (Ruptura) and Fail Close (Emissa) versions. Tested for 500,000 cycles.

Quick and easy installation with the Click-it system.
Withstands 300 kg of daily screw pressure.
Deep screw anchor depth 17.5 mm.
Universal left/right.
Corrosion-resistant: black anodized aluminum housing.
Available for 40 mm and 50 mm deep profiles.
Power supply: 12 V–24 V AC/DC.
Power consumption: 10 W / 12 V–0.8 A / 24 V–0.4 A.

• INTRALEC-C-40-R Ruptura (NO) - with plate
• INTRALEC-Z-40-R Ruptura  (NC)
