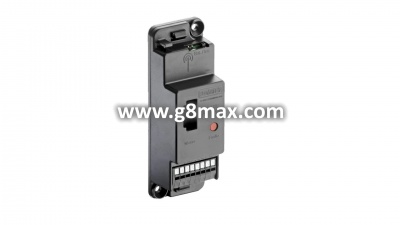

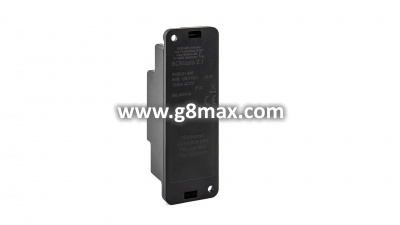

SOMMER RECEIVER RX09-2-1-868

The SOMcom2.1 radio receiver can be used for gate drives, electric door openers and lighting, as well as other devices. The built-in radio module operates with the 128-bit encrypted 868.95 MHz SOMloq2 standard. This technology allows the devices to be controlled using SOMMER Pearl, Slider+ or Telecody hand-held transmitters. The SOMcom2.1 has two outputs for two devices and one input for feedback.

Most SOMMER door openers are now equipped with a SOMloq2 radio receiver, for which a wide range of radio accessories are available. In addition to such internal radio modules, the manufacturer also offers the same technology for the installation of third-party devices. These devices can be equipped, for example, with the "SOMMER 2-channel radio receiver SOMcom2.1" and thus operated with the same accessories as the door openers.

The SOMcom2.1 is an improved version of its predecessor SOMcom2 with a feedback function, a DIN rail mountable housing and an antenna connection. This receiver has two relays that can be set to push-to-talk, defined on and defined off. SOMlink also provides a switching mode. Up to 40 hand transmitter buttons can be stored in the internal memory, and up to 450 with the Sommer EPROM Memo plug-in module.

Attention!
Only suitable for Sommer SOMloq2 remote controls and keypads.

Older SOMloq models do not work with this receiver, order: RX04-RM02.
