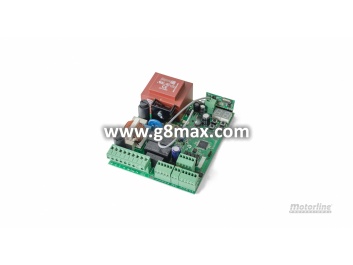

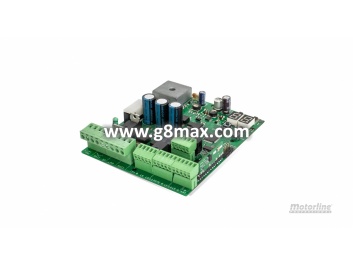

Control panel MOTORLINE MCS01

Control board developed to work together with 230Vac / 24Vdc traffic lights for controlling vehicle passage in narrow, two-way locations, for example, garages, tunnels or bridges.

Main features:
• It allows to define the time that each light remains
on, as well as to choose the initial colour of each
traffic light
• Operate with two or three colour traffic lights
• Choose the polarity of the inputs (NO or NC)
• Power supply to the control board and traffic lights made independently, allowing the use of different voltages
• Possibility of controlling the alternation of the lights through an external board

It has 3 operating modes:
1. Park capacity mode: the lights alternate through detectors and is able to memorize the number of vehicles that have entered into a park, up to a maximum of 99
2. Timer mode: the lights alternate when they reach the set time
3. Detector mode: the lights alternate through
detectors

DELIVERY FROM E.S.
DELIVERY TIME 2-3 WEEKS!
